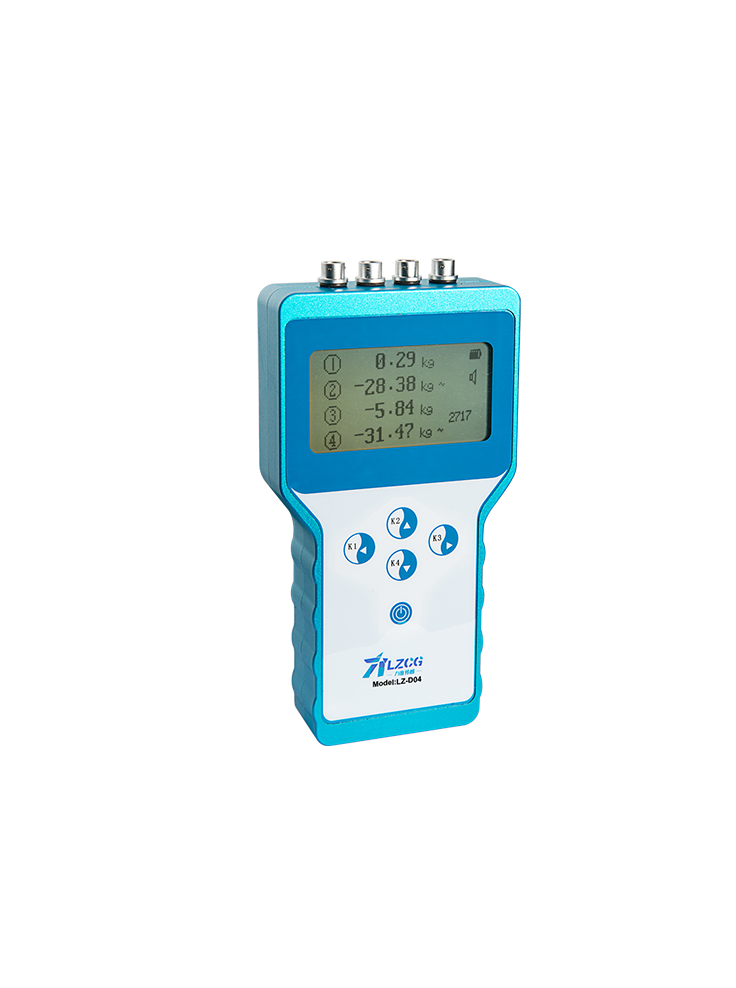

LZCG LZ-D04 Portable Dynamometer

Power Supply: DC 12V rechargeable battery

1-4-channel Input Singal: 0-12.5mV

A/D Resolution: 24-bit Σ-ΔADC

Sampling Rate: 2.5-1280Hz

Non-Linearity: 0.01% F.S.

Communication Port: RS485

Digital Input: -99999-99999

Display Accuracy: 1/100,000

Operation Temperature Range: -20°C~+45°C

Storage Temperature Range: -30°C~+60°C

Applications: Suitable for push-pull force testing, insertion and extraction force testing, destructive testing, etc., of various products, and can be combined with various testing equipment and fixtures to form small testing machines for different purposes. Widely used for online force value detection and periodic calibration in various occasions.
