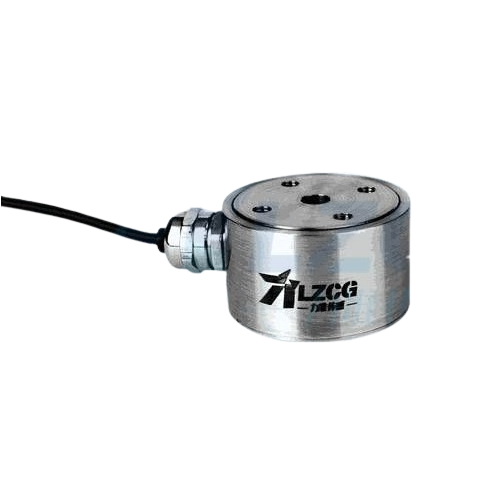

LZCG LF-605-30KG Column Type Force Sensor (30kg)
ManufacturerLZCG(View more products from this manufacturer)
ModelLF-605-30KG
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Capacity: 30kg
Material: Stainless Steel
Rated Output: 2.0±10%mV/V
Zero Balance: ± 2 % F.S.
Non-linearity: 0.1% F.S.
Hysteresis: 0.1% F.S.
Repeatability: 0.1% F.S.
Creep (30min): 0.05% F.S.
Temp Effect on Output: 0.05% F.S. / 10℃
Temp Effect on Zero: 0.05% F.S. / 10℃
Output/Input Impedance: 350 (700)± 3Ω/385(750)±5Ω
Insulation: ≥5000MΩ/100VDC
Operating Temp Range: - 20 ~ 80℃
Safe overload: 150%
Maximum overload: 200%
Cable Size: φ 3 x 3m
