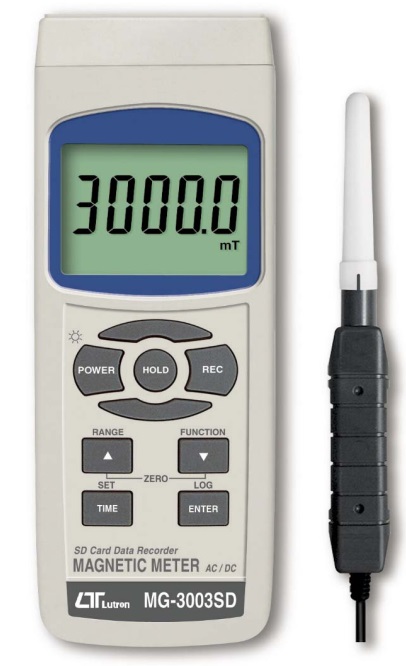

LUTRON MG3003SD (gồm thẻ nhớ) Magnet Electromagnetic Field Meter

Wide range, professional magnetic measurement.

Unit : G ( Gauss ), mT ( milli Tesla ).

Sampling Time of display : Approx. 1 second.

Measurement Range

+ DC function :

* mT : 150.00 mT, 1500.0 mT.

* G : 1500 G, 15,000 G

+ AC function :

* mT : 150.00 mT, 1500.0 mT.

* G : 1500 G, 15,000 G

Resolution :

+ DC function :

* mT : 0,01 mT / 0,1 mT

* G : 0.1 G / 1 G

+ AC function :

* mT : 0,01 mT / 0.1 mT

* G : 0.1 G / 1G

Accuracy ( 23± 5 )℃ :

* DC : ± ( 5 % rdg. + 10 digit )

* AC : ± ( 5 % rdg. + 20 digit )

Frequency Response (AC measurement) : 50 Hz / 60 Hz

Power Supply : ( UM3, AA ) x 6 PCs or ADC 9V adapter input ( AC/DC power adapter is optional)

SD card capacity

Data Hold, Maximum & Minimum value.

Data Output : RS 232/USB PC computer interface (Optional)

Operating Temperature / Humidity : 0-50℃ / less than 85% R.H

Weight : 489 g

Accessories Included : Instruction manual, Magnetic Probe, Hard carrying case

Optional Accessories : AC to DC 9V adapter, USB cable, USB-01, RS232 cable, UPCB-02, Data Acquisition software, SW-U801-WIN, Excel data Acquisition software, SE-E802.
