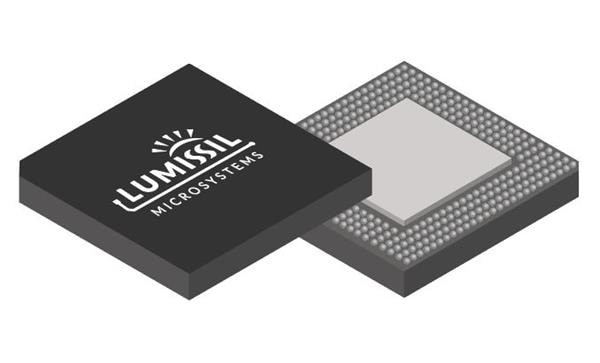

Lumissil X1600E Processors - Application Specialized Low-power AIoT Micro-Processor, BGA-150, 9mm x 9mm

Core: XBurst

Data Bus Width: 32 bit

Interface Type: CAN, GPIO, I2S, USB

Mounting Style: SMD/SMT

Number of Cores: 1 Core

Watchdog Timers: Watchdog Timer

Instruction Type: Floating Point

Moisture Sensitive: Yes

L1 Cache Data Memory: 16 KB

Maximum Clock Frequency: 80 MHz

Operating Supply Voltage: 3.3 V

L1 Cache Instruction Memory: 16 KB

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

L2 Cache Instruction / Data Memory: 128 KB
