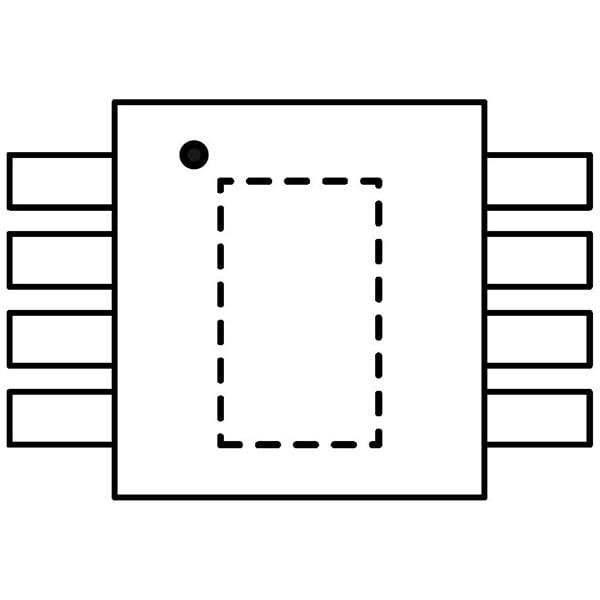

Lumissil IS32LT3954-GRLA3-TR LED Driver Regulator 3.0A Dimmable Buck Switching Regulator with Fault Reporting, Spread Spectrum, SOP-8-EP

Dimming: With Dimming

Features: Brightness Control/Dimming

Topology: Buck

Output Type: Constant Current

Input Voltage: 4.5 V to 38 V

Mounting Style: SMD/SMT

Output Current: 3 A

Output Voltage: 12 V, 24 V

Number of Outputs: 1 Output

Moisture Sensitive: Yes

Number of Channels: 1 Channel

Input Voltage - Max: 38 V

Input Voltage - Min: 4.5 V

Operating Frequency: 100 Hz to 20 kHz

Supply Current - Max: 2 mA

Pd - Power Dissipation: 2.29 W

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
