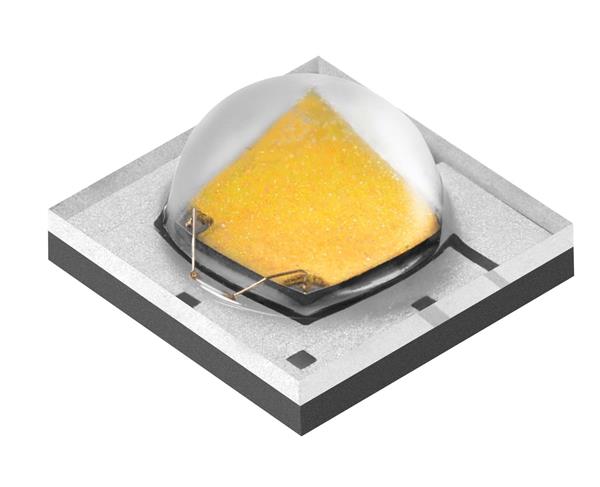

Luminus Devices SST-20-WF57-A2-D3572 High Power LEDs 3535 2A 3V 5700K 80CRI A-type

Width: 3.45 mm

Height: 1.98 mm

Length: 3.45 mm

Features: Phosphor on Chip Technology

Lens Color: Colorless

Lens Shape: Dome

Power Rating: 7 W

Configuration: Single

Viewing Angle: 120 deg

Mounting Style: SMD/SMT

Lens Dimensions: 2.6 mm

Lens Transparency: Water Clear

Illumination Color: Cool White

Moisture Sensitive: Yes

If - Forward Current: 700 mA

Vf - Forward Voltage: 2.8 V

Luminous Flux/Radiant Flux: 295 lm

Color Rendering Index - CRI: 80

Wavelength/Color Temperature: 5700 K

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
