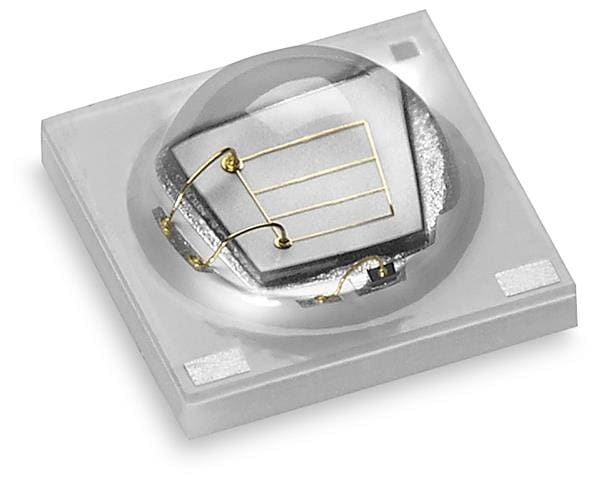

Luminus Devices SST-10-B-B130-P450 High Power LEDs Blue Emit LED 450 nm, SST-10 Series

Width: 3.45 mm

Height: 1.9 mm

Length: 3.45 mm

LED Size: 3.45 mm x 3.45 mm x 1.9 mm

Lens Color: Colorless

Lens Shape: Dome

Unit Weight: 1.485 g

Power Rating: 5 W

Viewing Angle: 130 deg

Mounting Style: SMD/SMT

Lens Dimensions: 2.6 mm

Lens Transparency: Clear

Illumination Color: Blue

Moisture Sensitive: Yes

If - Forward Current: 350 mA

Vf - Forward Voltage: 3 V

Luminous Flux/Radiant Flux: 550 mW

Wavelength/Color Temperature: 450 nm

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 40 C
