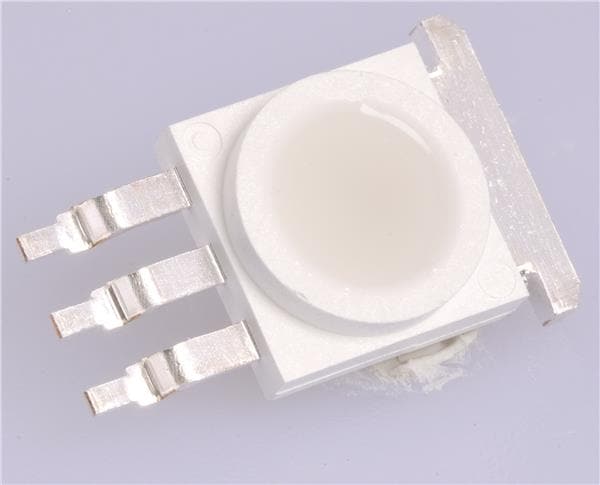

Lumex SML-LX1610RGBW/A High Power LEDs HI-PWR RGB 636/525/470nm

Width: 10 mm

Height: 3.3 mm

Length: 10.6 mm

Features: High Power LEDs

LED Size: 10.6 mm x 10 mm x 3.3 mm

Lens Color: Colorless

Lens Shape: Round

Unit Weight: 2 g

Power Rating: 3 W

Viewing Angle: 110 deg

Mounting Style: SMD/SMT

Number of LEDs: 3 LED

Peak Wavelength: 626 nm, 525 nm, 470 nm

Lens Transparency: Clear

Illumination Color: RGB

Moisture Sensitive: Yes

If - Forward Current: 350 mA

Vf - Forward Voltage: 2.1 V, 3.5 V, 3.5 V

Vr - Reverse Voltage: 5 V

Luminous Flux/Radiant Flux: 25 lm, 25 lm, 8 lm

Wavelength/Color Temperature: 626 nm, 525 nm, 470 nm

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 30 C
