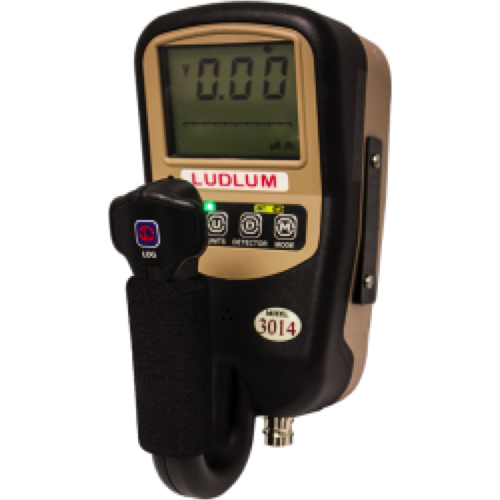

LUDLUM 3014 Dual-Detector Digital Survey Meter / SCA (Energy compensated GM; 50 mSv/h (5 R/hr))

Internal Detector / Range: Energy compensated GM Background to 50 mSv/h (5 R/hr)

Compatible External Detectors: GM, scintillation, proportional, or neutron detectors

High Voltage: 300 to 2400 Vdc

Linearity: Readings within 10% of true value

Modes: Four operational modes including rate, max, integrated dose, and count

Display: 3-digit auto-ranging LCD with large 20 mm (0.8 in.) digits.

Units: (k)(M)c, (k)cps, (k)(M)cpm, (k)(M)d, (k)(M)Bq, (k)(M)Bq/cm2, (k)(M)dpm, (µ)(m)(k)(M)R, (µ)(m)(k)R/h, (µ)(m)(k)(M)Sv, (µ)(m)Sv/h, (µ)(m)(k)(M)Rem, (µ)(m)(k)Rem/h.

Indicators: bar graph, radiation type (alpha (α), beta (β), gamma (γ), neutron (n)), mode (MAX, INTG), three alarm levels (ALARM 1, 2, 3), fault messages (FAULT, OVERLOAD, LOSS OF COUNT, OVERRANGE), USB, wireless, audio, and low-battery.

Display Range:

00.0 cps to 999 kcps

00.0 cpm to 99.9 Mcpm

00.0 Bq to 999 MBq

00.0 Bq/cm2 to 999 MBq/cm2

00.0 dpm to 999 Mdpm

0.00 µR to 999 MR

0.00 µR/h to 9.99 kR/h

0.00 µSv to 999 MSv

0.00 µSv/h to 999 Sv/h

0.00 µRem to 999 MRem

0.00 µRem/h to 9.99 kRem/h

0 c to 999 Mc (counts)

0 d to 999 Md (disintegrations)

Operational display ranges are dependent on the detector and dead time configuration. The minimum and maximum display can be set to limit the display to the calibrated range.

Data Logging: Can store up to 1000 data points internally. Requires Lumic Data Logger Kit (see Options)

Response Time: User-selectable from 1 to 60 seconds, auto SLOW, auto FAST, fixed SLOW (22 s), fixed FAST (4 s)

Alarms: Three count rate, exposure/dose, scaler, and accumulated dose alarm set-points adjustable over the display range

Power: Four "AA" batteries

Temperature Range: -20 to 50 °C (-5 to 122 °F), may be certified for operation from -40 to 65 °C (-40 to 150 °F)

Environmental Rating: NEMA rating of 3x or IP rating of 53

Size (H x W x L): 16.5 x 11.4 x 21.6 cm (6.5 x 4.5 x 8.5 in.)

Weight: 0.9 kg (2.0 lb) (excluding detectors and clips)
