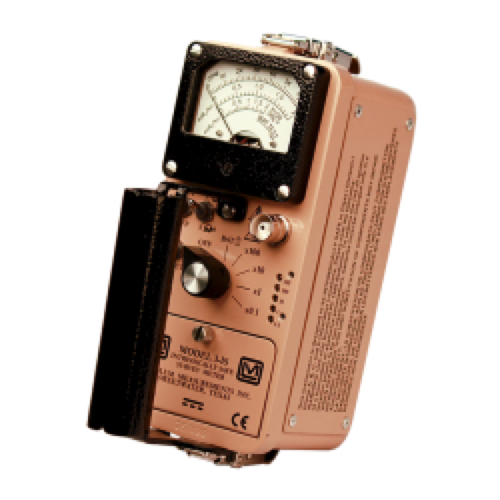

LUDLUM 3-IS Intrinsically Safe Survey Meter (0 ~ 200 mR/hr, 0 ~ 500 kcpm)

Application: Alpha, Beta, Gamma, or Neutron surveying in potentially explosive environments

Compatible Detectors: Supports select Ludlum radiation detectors (see Compatible Detectors tab) that can be purchased separately

Detection Range: Typically 0 to 200 mR/hr, or 0 to 500 kcpm

Linearity: Reading within 10% of true value with detector connected

Meter Dial: 0 to 2 mR/hr, or 0 to 500 kcpm, BAT TEST

(Meter Faces tab lists other available meter faces)

Meter: 6.4 cm (2.5 in. arc), 1 mA analog type

Controls:

Rotary Selector: Switches between: Instrument off, Battery check, Ranges: ×0.1, ×1, ×10, ×100

Response Switch: Toggles between FAST (4 s) or SLOW (22 s) from 10% to 90% of final reading

Reset Push Button: Zero meter

Audio Switch: Audio on/off, Built-in unimorph speaker, greater than 60 dB at 0.6 m (2 ft)

Calibration Controls: Accessible from front of instrument (protective cover provided)

High Voltage: Adjustable from 400 to 1000 Vdc

Threshold: Fixed at 40 mV ± 10 mV

Temperature Range: -20 to 50 °C (-4 to 122 °F)

Power: Two each Procell PC1300 “D” cell batteries (see Warning note below). Batteries are housed in an externally accessible sealed compartment.

Battery Life: Typically greater than 2000 hours with alkaline batteries; battery condition can be checked on meter.

(See Low Battery Note)

Construction: Cast and drawn aluminum with beige powder coat

Connector: Series "C" with locking screws to prevent inadvertent disconnection during operation

Size (H x W x L): 16.5 × 8.9 × 21.6 cm (6.5 × 3.5 × 8.5 in.), including handle

Weight: 16 kg (3.5 lb), including batteries
