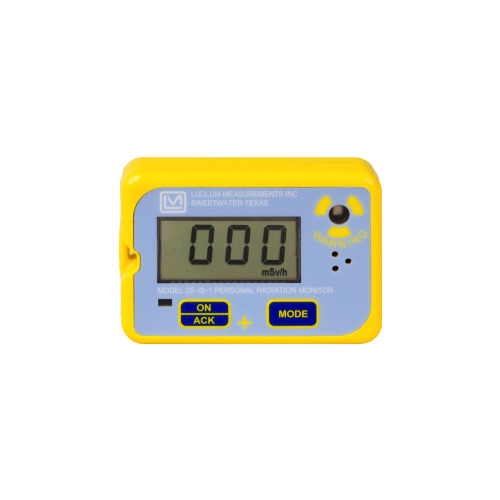

LUDLUM 25-IS-1 Intrinsically Safe Personal Radiation Monitor (60 keV ~ 2 MeV, 0.001 mSv/h (mSv) ~ 9.99 Sv/h (Sv))

Detector: Internal energy-compensated GM

Energy Range: 60 keV to 2 MeV

Display: 3½ digit backlit LCD display

Display Range: 0.001 mSv/h (mSv) to 9.99 Sv/h (Sv)

Also displays time remaining from 19:59 to 00:01 (in hh:mm format)

Gamma Response: Typically 1800 cpm per mSv/hr

Alerts & Alarms: Radiation alarms are adjustable over entire range. There are distinct alerts and alarms for exposure and accumulated dose:

Dose rate alert

Dose rate (hi)

Accumulated dose alert

Accumulated dose (hi)

Time remaining to allowed dose (hi)

Detector failure alert

Low-battery notice when only 8 hours remain

Loss of Count Protection: If no pulses are received from the detector in 60 minutes, instrument failure is indicated by an audible and visual alarm and the display alternating between "0.0" and "F"

Audio: Built-in speaker (typically 95 dB at 30.5 cm [1 ft])

Calibration: Requires no tools or software when exposed to a traceable radiation field

Calibrated Range: Normally calibrated from: 0.02 mSv/h to 9.99 Sv/h

Temperature Range: -40 to 65 °C (-40 to 150 °F)

Power: 2 each lithium coin cell batteries (see Warning note below)

Battery Life: Typically 6000 hours. Provides 8 hours warning of low battery.

Construction: Injection-molded plastic housing with sub-surface printed membrane front panel, completely gasketed for water resistance

Size (H x W x L): 7.6 x 5.4 x 1.7 cm (3.0 x 2.1 x 0.69 in.)

Weight: 144 g (5.1 oz), including batteries
