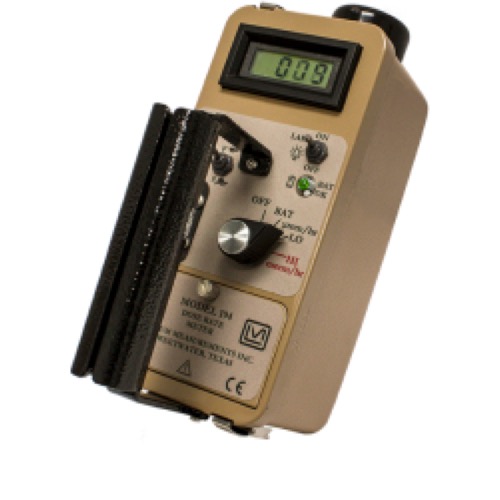

LUDLUM 194/E Dose Equivalent Rate Meter (μrem/hr; Extended Detector)

Indicated Use: Low-level radiation surveys

Detector: Internal rugged plastic scintillator, EJ-256

Energy Response (Model 194 only): Energy-flat within ± 30% relative to ambient dose equivalent from 50 to 1300 keV

Ranges:

Low Range: Background to 19.99 µSv/h (1999 µrem/hr)

High Range: 1 to 1999 µSv/h (0.1 to 199.9 mrem/hr)

Display: 3½-digit LCD with 10 mm (0.4 in.) digits, backlight, and protective bezel

Extended detector with (µ)(m)rem/hr display

Power: Two each "AA" cell batteries (externally accessible from the front of the instrument)

Temperature Range: -10 to 50 °C (14 to 122 °F)

Environmental Rating: Water-resistant, IP rating of 65

Size (H x W x L): 19.0 x 8.9 x 21.6 cm (7.5 x 3.5 x 8.5 in.)

Weight: 1.1 kg (2.5 lb), including batteries
