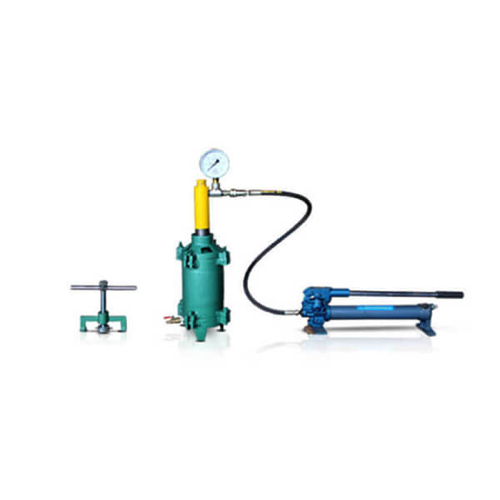

Ludatest SY-2 Concrete Pressure Weepage Tester (6MPa)

Description:

It is a special apparatus used for the determination of bleeding of freshly placed concretes under certain pressure conditions, as well as the calculation of bleeding rate and pressure bleeding ratio, which is suitable for the determination of pressure bleeding of concrete mixtures with aggregate size not exceeding 40 mm.

Specification:

Working pressure(MPa): 6

Minimum division value (MPa): ≤0.1

Working piston diameter (mm): Φ125

Working piston pressure (MPa): 3.2

Mesh size (mm): Φ0.315

Overall dimensions (mm): 810×360×240

Weight (kg): 30
