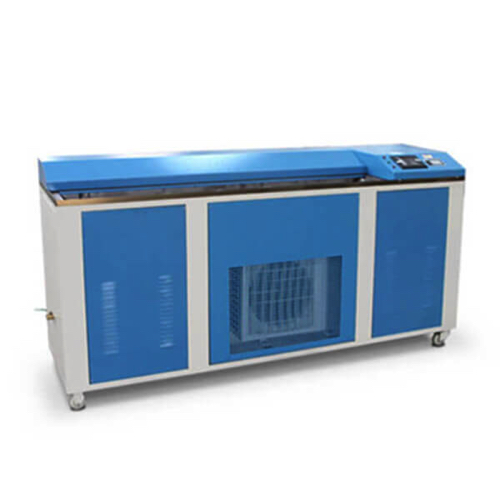

Ludatest STYD-3 Constant Temperature Even Significant Double Asphalt Ductility (50±2.5,10±0.5)

Description:

This product is suitable for measuring the extension of materials such as viscous petroleum, viscous bituminous shale, liquid waxes, asphalts, liquid bitumen distillation residues and bitumen emulsion evaporation residues. The machine integrates mechanical and electrical technologies together, and is provided with microcomputer automatic temperature control system; it also adopts advanced stepless frequency conversion technology, and has double-speed function. The apparatus features smooth extension, good thermal insulation and low noise.

Specification:

Tensile Speed(mm/min): 50±2.5,10±0.5

Maximum Tensile Length(mm): 1300

Test Temperature(℃): 2－50（it can adjust according to the actual need）

Heating Power(kW): 3-3.5

Refrigerating Capacity(kW): 1.1

Temperature Control Accuracy(℃): ±0.1

Environment Humidity (PH%): ≦85﹪

Voltage: 220V±10% 50HZ

Inside Idimensions:1560×190×160

Overall Dimension (mm): 2080×455×1450

Net Weight (kg): 300

Gross Weight (kg):350
