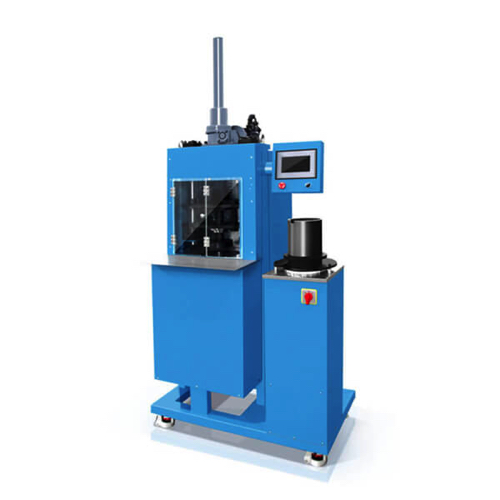

Ludatest LDSY-3 Asphalt Mixture Gyratory Test Machine (200～1500Kpa)

Descrition:

It is a simulation of the actual pavement material volume and attributes, in compaction angle constant pressure, fixed and fixed compaction speed condition, for hot mix asphalt test cylinder compaction molding equipment pieces produced by kneading method.

Specification:

Fixed pressure: 200～1500Kpa

Clockwise rotation:1000 circles

counterclockwise rotation: 500 circles

The highest temperature sample: 170℃

The highest temperature of mould: 175℃

Circle number: 999 circles

Rotation rate: 30rpm

Mould weight: 8kg

Voltage: AC380V±10%，50Hz

Outer dimension: 1000×850×1800mm

Weight: 370kg
