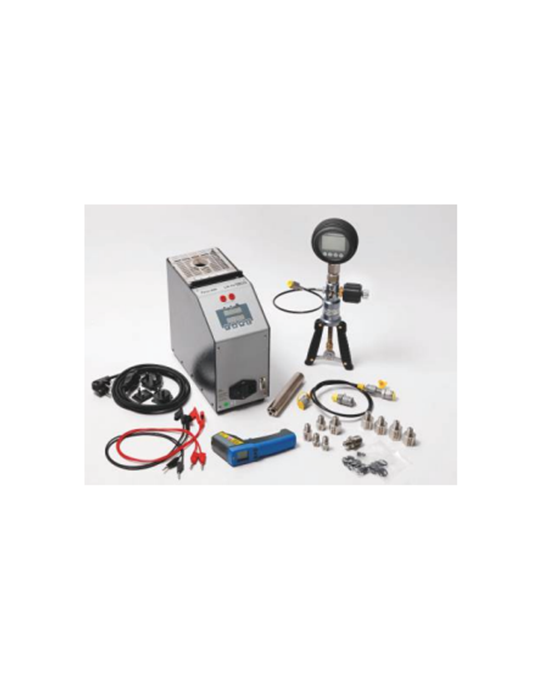

LR-CAL MARINE-KIT-PK-0040 Marine Calibration Kit

The equipment set includes:

Portable Temperature Calibrator

Model: PYROS 650 (Item code: PYROS-650-DNV)

Technical Specifications:

Heat source control for temperature calibration

Temperature range: ambient temperature up to 650°C

Functions: Ramp and Switch Test

Accuracy: ±0.5°C

Stability: ±0.5°C

Well dimensions: Depth 150mm, Diameter 26mm

Communication interface: RS232

Power supply: 115/230 VAC

Scope of Supply:

Temperature calibrator

Power cable for the calibrator

Connection cable for probe testing

Spare fuse

Insert extractor tool

Thermal insert with 4 holes (diameters 3.2–5.0–7.0–10.5 mm)

User manual

Factory calibration certificate

Infrared Thermometer (Non-Contact Measurement)

Model: ScanTemp 385

Technical Specifications:

Measuring range: -35 to +365°C (-31 to +689°F)

Features: Max temperature display, data hold function, backlit LCD, unit switchable between °C/°F

Operating temperature: 0...50°C (32...122°F)

Accuracy: ±2% or ±2°C (whichever is greater)

Repeatability: ±1% or ±1°C (whichever is greater)

Emissivity: 0.95 or 0.7 (switchable)

Display resolution: 0.1°C; above 199.9°C: 1°C

4-digit LCD display

Response time: approximately 500ms

Optical resolution: 12:1

Scope of Supply:

Infrared thermometer with battery

User manual

Digital Pressure Gauge

Model: DM80 (Item code: DM80-0040-0-G12)

Technical Specifications:

Pressure range: 0 ~ 40 bar

Accuracy: ±0.5% Full Scale

Pressure connection: 1/2" BSP Male

Casing material: Metal

Protection rating: IP65

Gauge diameter: 80mm

Weight: 600g

Scope of Supply:

Digital pressure gauge with protective case and battery

User manual

Handheld Pressure/Vacuum Pump

Model: LPP40 (Item code: LPP-40-G14)

Technical Specifications:

Positive pressure range: 0 ~ 40 bar

Vacuum range: 0 ~ -0.95 bar (-950mbar)

Pressure connections:

1/2" BSP female for connection to reference gauge

1/4" BSP female for connection to the device under test and other pressure equipment

Design: Button switch to toggle between vacuum and positive pressure generation

High-pressure adjustment: via control valve

Fine-pressure adjustment: via fine control valve

Scope of Supply:

Handheld pressure pump

Pressure connection hose

User manual

Other Accessories:

Adaptor set for connecting devices under test with BSP, NPT threads

Carrying case

Datasheet
