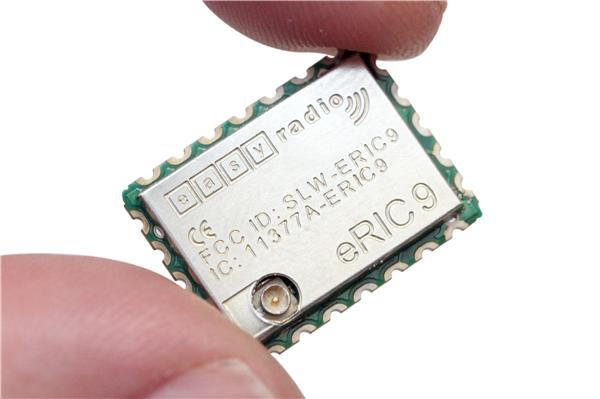

Low Power Radio Solutions (LPRS) eRIC9-FCC Sub-GHz Modules Euro/US 868/915MHz Int Cont Trans RFMod

Frequency: 868 MHz, 915 MHz

Dimensions: 20 mm x 15 mm x 2.2 mm

Unit Weight: 2 g

Output Power: - 3 dBm

Interface Type: SDI, SDO

Protocol - Sub GHz: ISM

Description/Function: Radio transceiver module is based on the CC430F5137 System-on-Chip device

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.5 V

Antenna Connector Type: External

Operating Supply Voltage: 3.6 V

Supply Current Receiving: 15 mA

Supply Current Transmitting: 32 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
