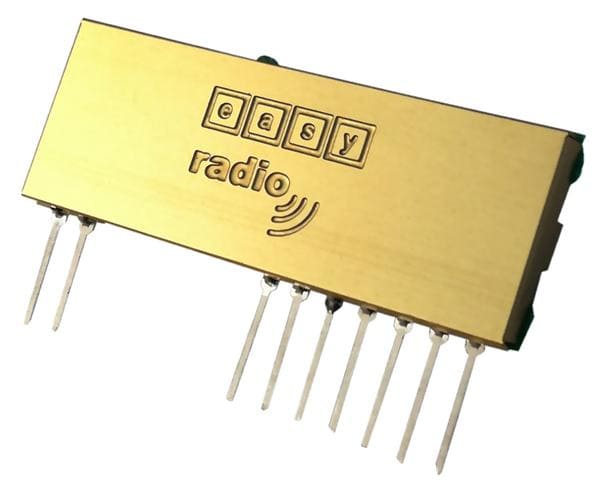

Low Power Radio Solutions (LPRS) eRA400TRS Sub-GHz Modules UK/Euro 402 - 470MHz eRA Trans RF Module

Frequency: 402 MHz to 470 MHz

Dimensions: 38 mm x 4 mm x 14 mm

Unit Weight: 4 g

Output Power: 10 mW

Interface Type: UART

Protocol - Sub GHz: ISM

Description/Function: Radio module is a complete sub-system that combines a high performance very low power RF transceiver, a microcontroller and a voltage regulator

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.5 V

Antenna Connector Type: Pin

Operating Supply Voltage: 3.3 V, 5 V

Supply Current Receiving: 21 mA

Supply Current Transmitting: 32 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
