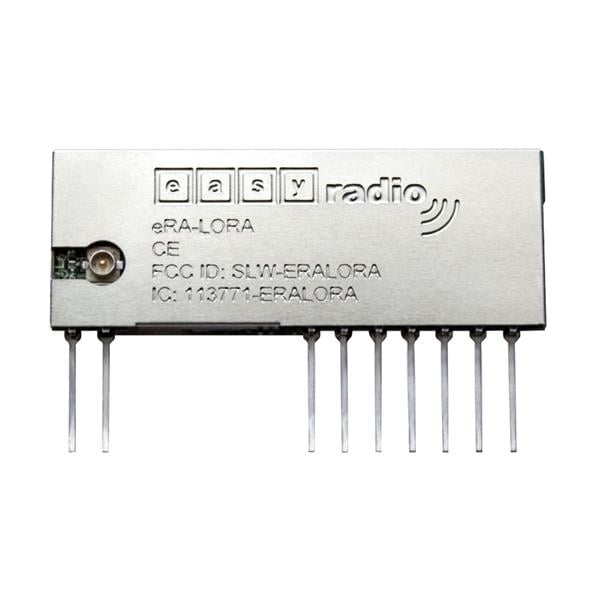

Low Power Radio Solutions (LPRS) eRA-LoRA Sub-GHz Modules Radio Transceiver Module 868MHz

Frequency: 868 MHz, 915 MHz

Dimensions: 38 mm x 14 mm

Unit Weight: 3 g

Output Power: 20 dBm

Interface Type: SDI, SDO

Protocol - Sub GHz: LoRa/LoRaWAN

Description/Function: Long Range Transceiver

Supply Voltage - Max: 5 V

Supply Voltage - Min: 3.3 V

Antenna Connector Type: u.FL

Operating Supply Voltage: 3.3 V to 5 V

Supply Current Receiving: 10 mA

Supply Current Transmitting: 90 mA

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
