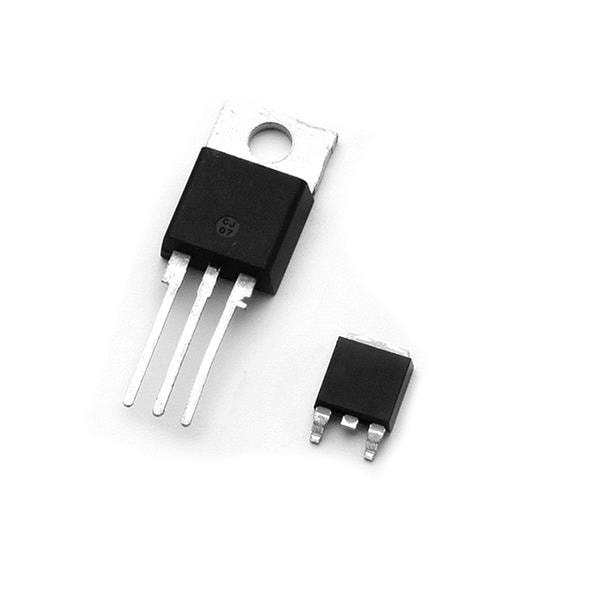

Littelfuse SRUK208RTP SCRs SCR TO220 1.2KV 8A STD THY
ManufacturerLittelfuse(View more products from this manufacturer)
ModelSRUK208RTP
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
REACH - SVHC: Details
Mounting Style: Through Hole
Vf - Forward Voltage: 1.6 V
Holding Current Ih Max: 30 mA
Gate Trigger Current - Igt: 15 mA
Gate Trigger Voltage - Vgt: 1.5 V
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
On-State RMS Current - It RMS: 8 A
Non Repetitive On-State Current: 100 A
Off-State Leakage Current @ VDRM IDRM: 10 uA
Rated Repetitive Off-State Voltage VDRM: 1.2 kV
