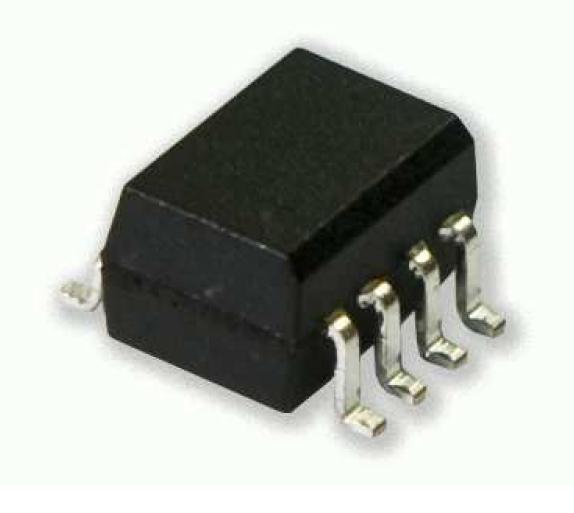

Lite-On LTV-207 Transistor Output Optocouplers SO8 100-200% 3.75KV 2CH Optocoupler

Fall Time: 3 us

Rise Time: 3 us

Output Type: Phototransistor

Unit Weight: 1.647 g

Mounting Style: SMD/SMT

Isolation Voltage: 3750 Vrms

Number of Channels: 2 Channel

If - Forward Current: 30 mA

Vf - Forward Voltage: 1.55 V

Vr - Reverse Voltage: 6 V

Current Transfer Ratio: 100 % to 200 %

Pd - Power Dissipation: 125 mW

Current Transfer Ratio - Max: 200 %

Current Transfer Ratio - Min: 100 %

Maximum Operating Temperature: + 110 C

Minimum Operating Temperature: - 55 C

Maximum Collector Emitter Voltage: 80 V

Maximum Collector Emitter Saturation Voltage: 400 mV
