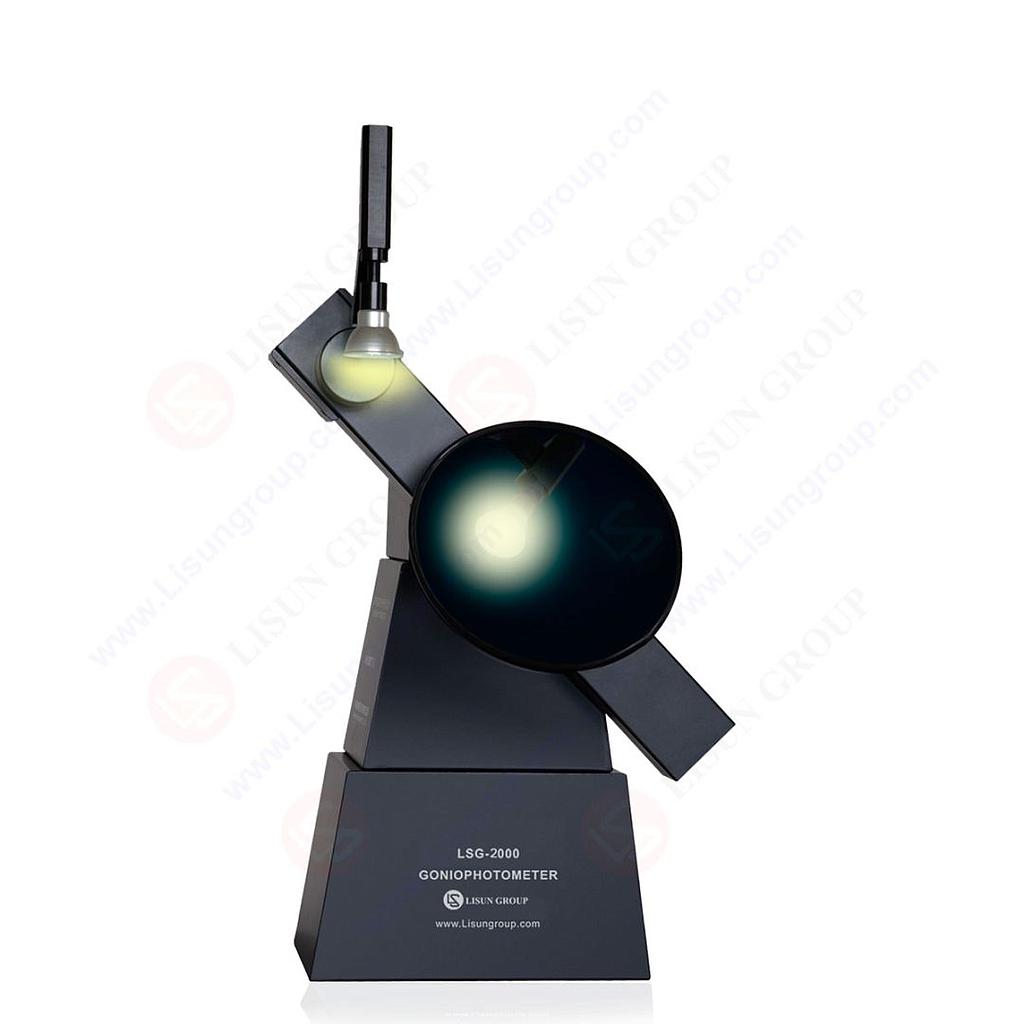

Lisun LSG-2000CCD Goniospectroradiometer with Moving Mirror (380nm ~780nm, ϕ 1000mm, Small Size)

1) The tested luminaire rotates around the mirror with an angle of (γ)±180°(or 0-360°) and the tested luminaire rotates around itself with an angle of (C)±180°(or 0-360°)

2) The accuracy of angle: 0.05° Resolution of angle: 0.001°

3) Luminosity Testing Range: Illuminance 0.001lx~99,999lx; Light Intensity 1.0cd～10^7cd(detector)

4) Accuracy of photometry: Germany produced constant temperature photodetector DIN5032-6/CIE pub1. No. 69 Class L

5) Testing Accuracy: 2%(Under Standard lamp); Stray Light: less than 0.1%

6) Work with high accuracy and quick CCD Spectroradiometer to measure spatial color parameters.

7) Accuracy of chromaticity coordinate: ±0.0015 or ±0.0005(under a standard lamp)

8) Spectral Wavelength Range: 380nm ~780nm; Accuracy of wavelength: ±0.5nm

9) English version software can run in Win7, Win8 or Win10

Measure Size (mm): Diameter= 1000

Measure Weight (Kg): 30

Measure Power(W): 600V/10A，AC/DC

System Configuration:

A. LSG-2000CCD Goniophotometric System

B. SLS-150W DC Standard Light Intensity Lamp

C. LS2010 Digital Power Meter

D. DC3010 CC & CV DC Power Source

E. LSP-1KVAR AC Power Source: 1KVA Pure Sine Wave AC Power Source

F. CASE-19IN 19inch Standard Instruments Cabinet

G. LMS-9000B High Precision CCD Spectraidomeeter

H. CLAMP-9000 Accessories and Adjustable Tripod for LMS-9000B
