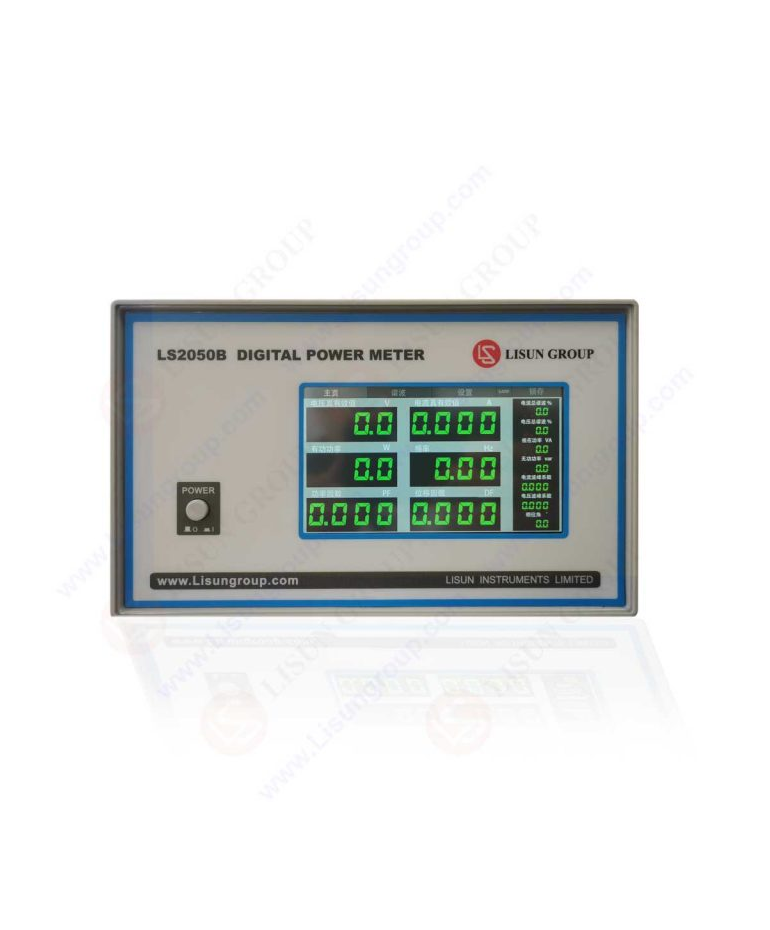

Lisun LS2050B Digital Power Meter

Input circuit type:

Voltage (v): Floating replacement input

Current (A): Floating replacement input

Input resistance

Voltage (v): > 1MΩ

Current (A): < 0.01Ω

Range

Voltage (v): AC/DC: 600V/300V/150V/75V Automatic

Current (A): AC/DC: 20A/8A/2A/0.5A Automatic

Continuous max permissible input

Voltage (v): 800V

Current (A):24A

 Automatic range switching

Increase range: Measured value over 110% rated range

Decrease range: Measured value lower than 80% rated range

Accuracy:

Voltage: ±(0.4% read value +0.1%range +1 digit)

Current: ±(0.4% read value +0.1%range +1 digit)
Power: ±(0.4% read value +0.1%range +1 digit)
