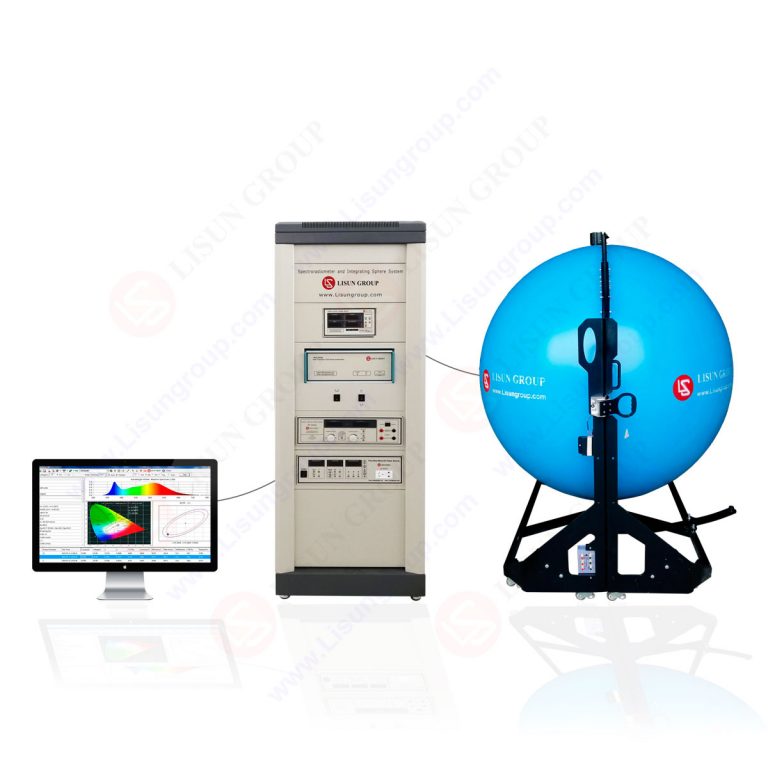

Lisun LPCE-2(LMS-9000) High Precision CCD Spectroradiometer & Integrating Sphere Test System (380nm ~ 800nm)

• Spectral Range Wavelength: 380nm~800nm

• Spectral Wavelength Accuracy: ±0.5nm(LMS-9000A), ±0.3nm(LMS-9000B), Wavelength Reproducibility: ±0.5nm(LMS-9000A), ±0.1nm(LMS-9000B)

• Sample Scanning Steps: ±0.1nm

• Accuracy of Chromaticity Coordinate (Δx, Δy): ±0.003 (LMS-9000A) and ±0.002 (LMS-9000B)

• Correlated Color Temperature CCT: 1,500K~25,000K(LMS-9000A), 1500K~100.000K(LMS-9000B), CCT Accuracy: ±0.5%(LMS-9000A), ±0.3% (LMS-9000B)

• Color Rendering Index Range: 0~100.0. Accuracy: ±(0.3%rd±0.3)

• Photometric linear: ±0.5%

• Stray light: <0.015%(600nm) and <0.03%(435nm)

• The system includes the auxiliary lamp device and the software includes self-absorption function

• It can measure the temperatures inside and outside of integrating sphere

• Connect with PC via USB cable. English version software can run on Win7, Win8 and Win10

• The LM-79 Photometric, Colorimetric and Electricity report can be exported PDF and LED Optical Maintenance test report can be exported Excel or PDF

System Configuration:

High Precision CCD Spectroradiometer (LMS-9000B or LMS-9000A), Optical Fiber (CFO-1.5M), Digital Power Meter (LS2012 or LS2010), DC Power Source (DC Series), AC Power Source (LSP-500VAR or LSP- 1KVAR), Integrating Sphere (IS-1.5MA and IS-0.3M), Standard Light Source (SLS-50W and SLS- 10W), Optical Path Converter (LS512B), 19 Inch Cabinet (CASE-19IN)

Datasheet
