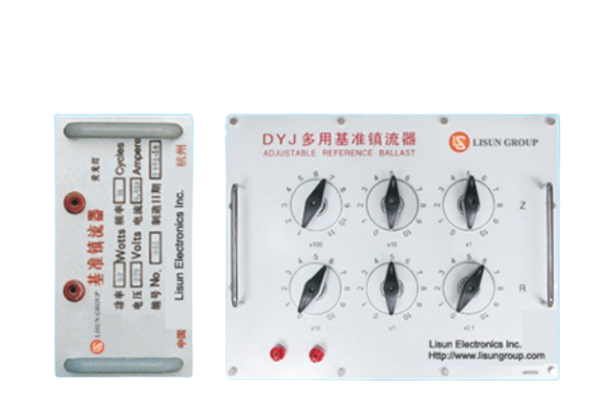

Lisun DYJ-50HZ Adjustable Reference Ballast (0 ~ 111Ω, 0.150 ~ 0.670A)

According to Double end fluorescent lamp of IEC 60081 (GB/T10682)

and the single-ended fluorescent lamp of IEC60901 (GB/T17262),

ANSI C78.81 and ANSI C82.3, DYJ Reference Ballast is used to test

for 4w~85w fluorescent lamp and electronic ballast test.

Specification:

• Inductance: 0~1240Ω (adjustable)

• Inductance Power Factor COSφ: 0.075~0.120

• Resistance: 0~111Ω (adjustable)

• Current Range 0.150~0.670A (Imax: 1A)

• Order Code: DYJ-50HZ is for 50Hz lamp test and DYJ-60HZ is for all 60Hz lamp test

According to IEC60188, IEC60662 and ANSI C82.5, Lisun Group developed the

DYJ-HID Standard Ballast (Reference Ballast) to test the HID lamp, HID ballast,

High-Voltage Mercury Lamp, High Voltage Sodium Lamp, Metal Halide Lamp and Halide Reactor.

More information, please contact Lisun Group.
