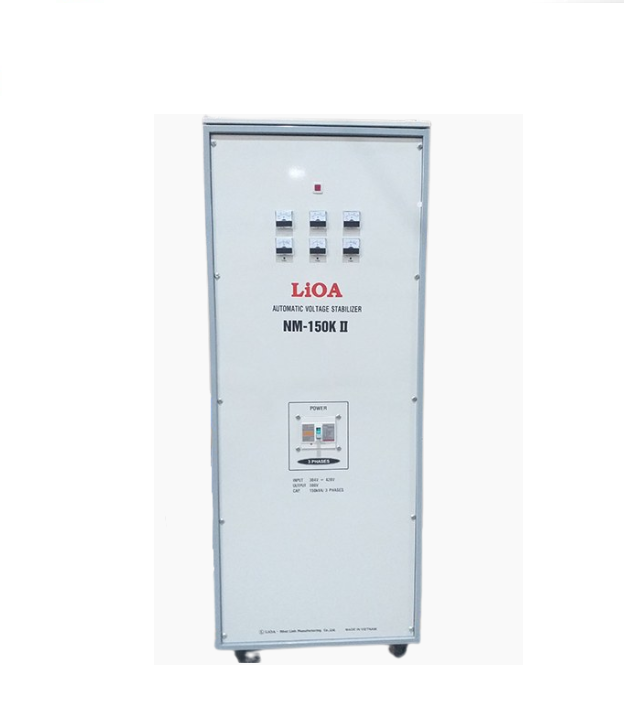

LiOA NM - 150K II Voltage (150KVA 3 phase, 304 ~ 420V)

Input voltage 3 phases: 304V ~ 420V

Output voltage 3 phases: 380V

Dimensions (WxLxH)mm: (935x665x1865)mm

Weight: 472Kg

Frequency: 49Hz – 62Hz

Response time to a 10% change in input voltage: 0.8s

Overload, short-circuit, overvoltage protection: Using Circuit Breaker

Number of Circuit Breakers: 01 unit (Overload, short-circuit, overvoltage protection)

Maximum current: 250A

Voltage meter (V): Yes (Digital voltage meter for output measurement)

Current meter (A): Yes (Digital current meter for output measurement)

Output voltage: Output voltage through 04 terminals at the back of the machine

Ambient temperature: - 5°C to + 40°C

Control principle: 12V motor engine.
