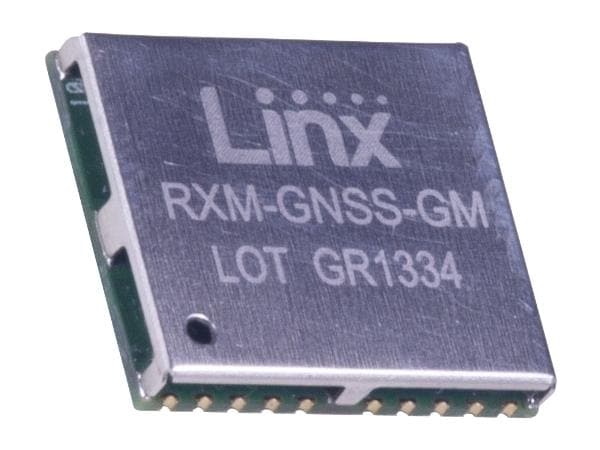

Linx Technologies - TE Connectivity RXM-GNSS-GM-T GPS Modules GM Series Receiver GNSS Module Reel

Frequency: 1.575 GHz

Dimensions: 15 mm x 13 mm x 2.2 mm

Interface Type: Serial

Mounting Style: SMD/SMT

Number of Channels: 99 Channel

Supply Voltage - Max: 4.3 V

Supply Voltage - Min: 3 V

Acquisition Sensitivity: - 161 dBm

Protocol - GPS, GLONASS: GPS, GNSS

Operating Supply Current: 16 mA

Operating Supply Voltage: 3 V to 4.3 V

Horizontal Position Accuracy: 3 m

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Time To First Fix - Cold Start: 33 s
