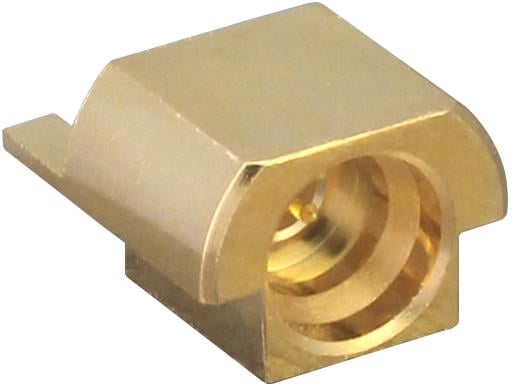

Linx Technologies - TE Connectivity CONSMP024-G Connectors SMP Jack 50 Ohm PCB Edge Mount
ModelCONSMP024-G
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Plug (Pin)
Polarity: Standard
Frequency: DC to 20 GHz
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: SMP
Body Style: Edge Mount
Orientation: Straight
Body Material: Beryllium Copper
Mating Cycles: 100 Cycles
Insertion Loss: 0.47 dB, 1.81 dB
Mounting Style: Edge Launch
Voltage Rating: 320 V
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 20 GHz
Minimum Frequency: DC
Termination Style: Solder
Coupling Mechanism: Snap-On
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
