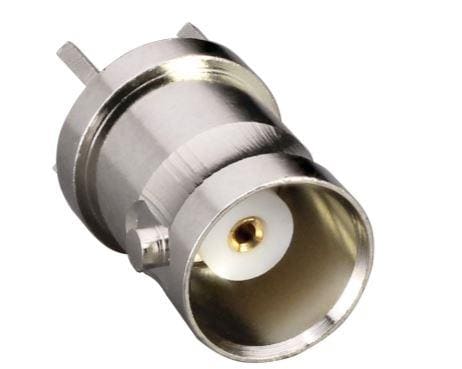

Linx Technologies - TE Connectivity CONBNC001 Connectors BNC Connector Jack, Female Socket 50 Ohm, Through Hole
ModelCONBNC001
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gender: Jack (Socket)
Polarity: Standard
Frequency: 0 Hz to 3 GHz
Impedance: 50 Ohms
Isolation: Isolated
RF Series: BNC
Body Style: Bulkhead
Body Finish: Nickel
Orientation: Straight
Body Material: Brass
Insertion Loss: 0.38 dB
Mounting Style: PCB Mount
Contact Plating: Gold
Contact Material: Brass
Maximum Frequency: 3 GHz
Minimum Frequency: 0 Hz
Termination Style: Solder
Coupling Mechanism: Bayonet
Contact Termination: Solder
Maximum Operating Temperature: + 165 C
Minimum Operating Temperature: - 65 C
