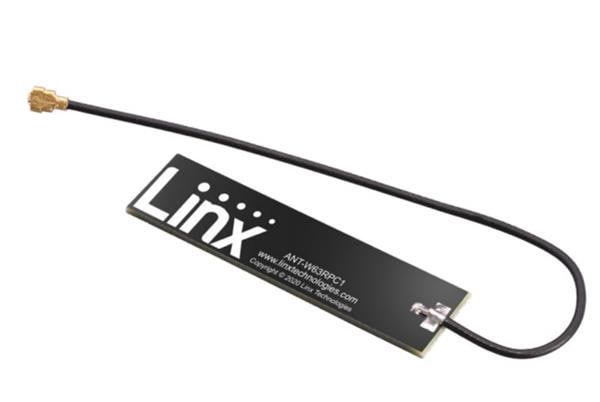

Linx Technologies - TE Connectivity ANT-W63RPC1-200 PCB Antennas Antenna WIFI6 2.4/5/6 GHz RPC Cut 200

Gain: 6.1 dBi

VSWR: 2.1

Style: I-Bar

Width: 11 mm

Height: 1.3 mm

Length: 43 mm

Impedance: 50 Ohms

Cable Type: Coaxial

Wavelength: 1/2 Wave

Application: WiFi

Cable Length: 200 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Adhesive Mount

Electrical Type: Embedded Monopole

Number of Bands: 3 Band

Center Frequency: 5 GHz

Mechanical Style: PCB Trace

Maximum Frequency: 6 GHz

Minimum Frequency: 2.4 GHz

Termination Style: SMD/SMT

Protocol - WiFi - 802.11: WiFi 6, WiFi 6E

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth
