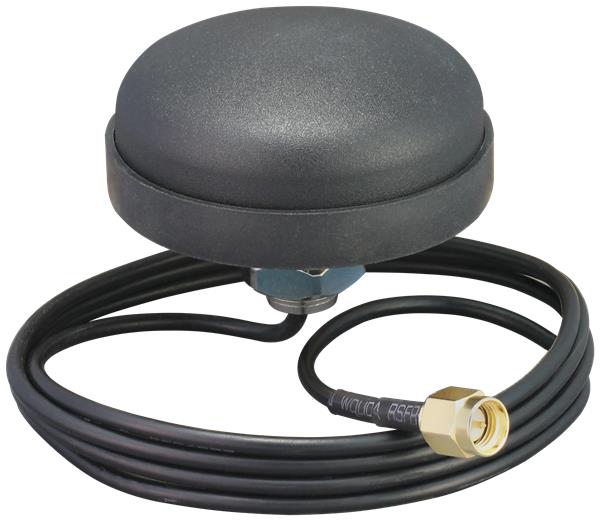

Linx Technologies - TE Connectivity ANT-W63-SPS1-3 Outdoor Antennas WiFi/WLAN Multiband Dipole Puck Antenna, External Panel Mount, 3 m Cable, SMA Plug

Gain: - 3.9 dBi, - 4.1 dBi, - 4.6 dBi

VSWR: 1.4, 1.5, 1.5

Style: Dome

Height: 23.3 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: RG-174/U

Wavelength: 1/2 Wave

Application: WiFi

Cable Length: 3 m

Polarization: Linear

Power Rating: 15 W

Mounting Style: Panel Mount

Electrical Type: Dipole

Number of Bands: 3 Band

Center Frequency: 2.4 GHz, 5 GHz, 6 GHz

Mechanical Style: Module

Ground Plane Size: 300 mm x 300 mm

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: ISM

Antenna Connector Type: SMA Male

Protocol - WiFi - 802.11: 802.11, WiFi

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
