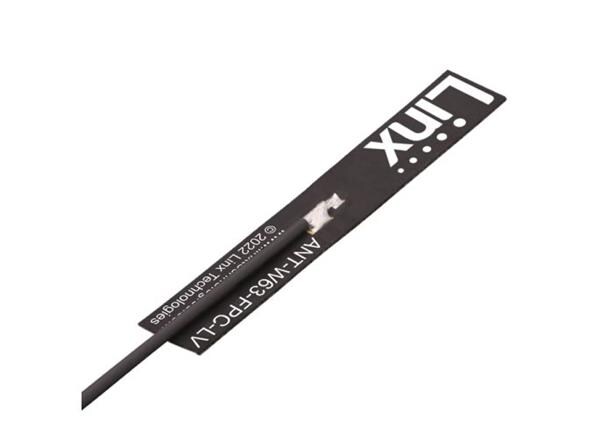

Linx Technologies - TE Connectivity ANT-W63-FPC-LV100M4 FPC Antenna WiFi6 GHz FPC antenna, 45x7mm, inline cable egress, 100mm cable, MHF4

Gain: 4.8 dBi, 6.3 dBi, 7.4 dBi

VSWR: 1.5, 1.6

Style: T-Bar Flex

Width: 7 mm

Height: 0.1 mm

Length: 45 mm

Impedance: 50 Ohms

Cable Type: 1.13 mm Coax

Wavelength: 1/2 Wave

Cable Length: 100 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 3 Band

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: MHF4 Plug

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
