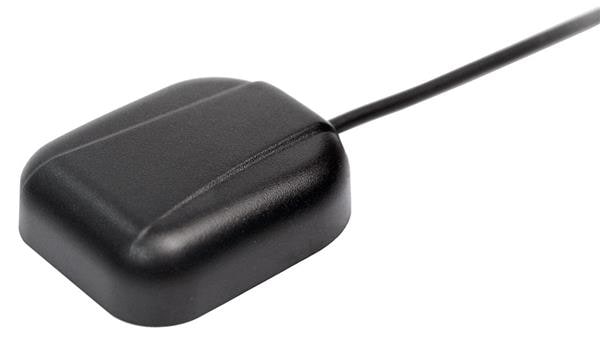

Linx Technologies - TE Connectivity ANT-GPS-SH2-SMA Passive Antenna ANTENNA GPS EXT MAG RG174 3M S

Gain: 5 dBi

VSWR: 1.5

Style: Square

Width: 36.5 mm

Height: 12.5 mm

Length: 45 mm

Bandwidth: 10 MHz

IP Rating: IP66

Impedance: 50 Ohms

Cable Type: 3 M RG174/U

Wavelength: 1/2 Wave

Application: Global Navigation, Timing Solutions

Unit Weight: 79.095 g

Cable Length: 3 m

Polarization: RHCP

Mounting Style: Magnetic Mount

Electrical Type: Dipole

Number of Bands: 2 Band

Center Frequency: 1.57542 GHz, 1.602 GHz

Mechanical Style: Module

Maximum Frequency: 1.607 GHz

Minimum Frequency: 1.57 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS, QZSS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
