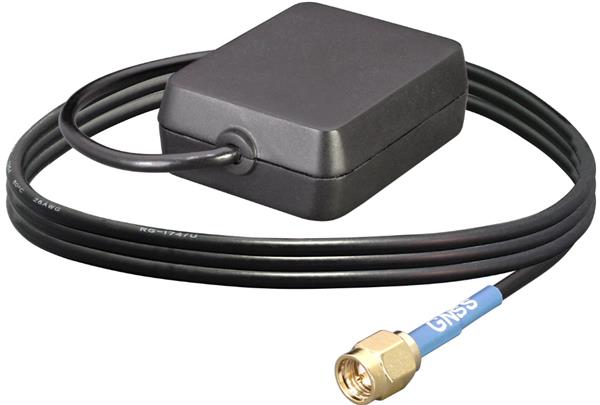

Linx Technologies - TE Connectivity ANT-GNRM-L1A-1 GNSS Antennas - GPS, GLONASS, Galileo, Beidou Antenna GNSS L1-L3 Ext Mag RG174 1M SMA
ModelANT-GNRM-L1A-1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 33.5 dBi
Width: 35 mm
Height: 5 mm
Length: 45 mm
IP Rating: IP67
Impedance: 50 Ohms
Polarization: RHCP
Electrical Type: Patch
Number of Bands: 3 Band
Center Frequency: 1.561 GHz, 1.575 GHz, 1.601 GHz, 1.602 GHz
Maximum Frequency: 1.602 GHz
Minimum Frequency: 1.561 GHz
Antenna Connector Type: RG-174
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
