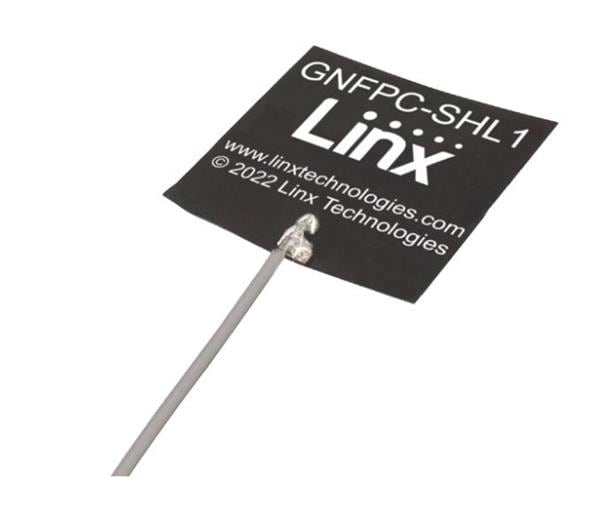

Linx Technologies - TE Connectivity ANT-GNFPC-SHL1200M4 FPS Antenna GNSS L1 Linear FPC Antenna, 200mm cable, MHF4-type Connector, GPS, GLONASS, Galileo, Beidou, QZSS

Gain: 2.6 dBi, 3.2 dBi

VSWR: 1.6, 1.9

Style: Flexible

Width: 25 mm

Height: 0.1 mm

Length: 25 mm

Impedance: 50 Ohms

Cable Type: 1.13 Coax

Wavelength: 1/2 Wave

Application: Global Navigation

Cable Length: 200 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 3 Band

Mechanical Style: Square

Maximum Frequency: 1.602 GHz

Minimum Frequency: 1.561 GHz

Termination Style: Connector

Antenna Connector Type: MHF4

Protocol - GPS, GLONASS: GPS, GLONASS

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
