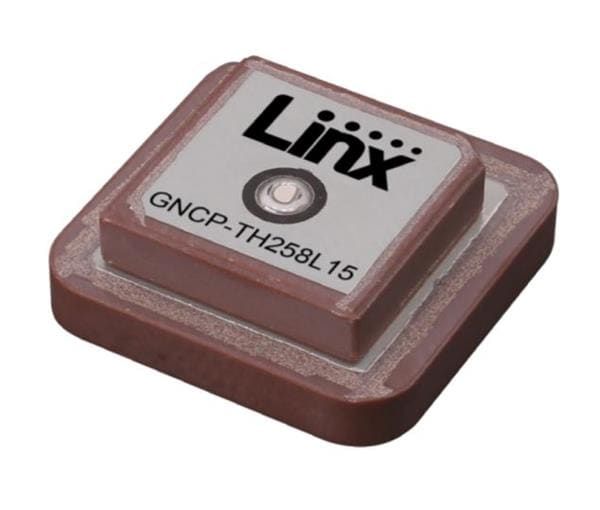

Linx Technologies - TE Connectivity ANT-GNCP-TH258L15 Passive Antenna Antenna GNSS L1L5 25x25 1.13 UFL

Gain: 5.6 dBi, 1 dBi

VSWR: 5.9, 6.4

Style: Ceramic

Width: 25.1 mm

Height: 8 mm

Length: 25.1 mm

Impedance: 50 Ohms

Application: Global Navigation, Timing Solutions

Polarization: RHCP

REACH - SVHC: Details

Mounting Style: PCB Mount

Electrical Type: Embedded

Number of Bands: 2 Band

Center Frequency: 1.58089 GHz, 1.17645 GHz

Mechanical Style: Patch

Maximum Frequency: 1.60868 GHz, 1.183 GHz

Minimum Frequency: 1.5531 GHz, 1.17 GHz

Termination Style: Pin

Protocol - GPS, GLONASS: BEIDOU, Galileo, GLONASS, GPS, IRNSS, QZSS

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
