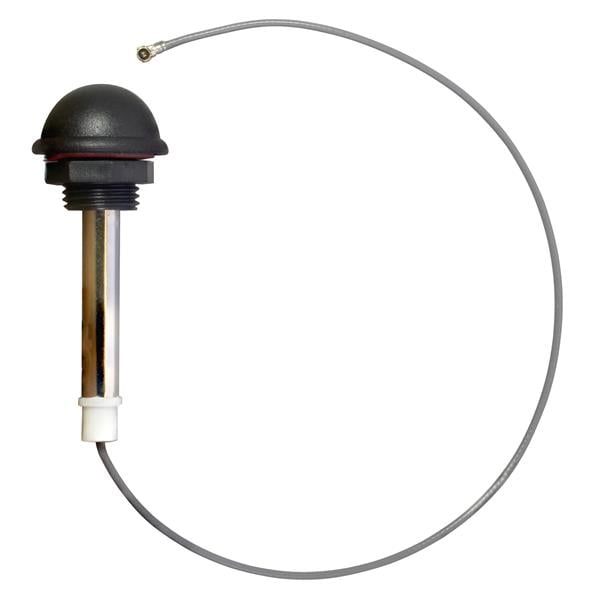

Linx Technologies - TE Connectivity ANT-DB1-WRT-MHF4 Passive Antenna U.FL/MHF1 Compatible Connector’

Gain: 3.2 dBi, 6.8 dBi, 7 dBi

VSWR: 1.9, 3.7, 4

Style: Dome

Length: 10 mm

Diameter: 19 mm

Bandwidth: 100 MHz, 150 MHz

Frequency: 2.4 GHz, 5 GHz

Impedance: 50 Ohms

Cable Type: 216 mm RF1.32

Wavelength: 1/2 Wave

Application: Single Band, Dual Band, ISM Applications, IoT Devices, Smart Home Networking, Sensing, Remote Monitoring, U-NII

Cable Length: 216 mm

Polarization: Linear

Power Rating: 5 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Dipole

Frequency Range: 2.4 GHz to 2.485 GHz, 5.15 GHz to 5.85 GHz, 5.925 GHz to 7.125 GHz

Number of Bands: 3 Band

Center Frequency: 2.4 GHz, 5 GHz, 6 GHz

Mechanical Style: Module

Maximum Frequency: 7.125 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM, U-NII

Antenna Connector Type: MHF4 Female

Protocol - WiFi - 802.11: 802.11 n/ax, WiFi 4, WiFi 5, WiFi 6

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
