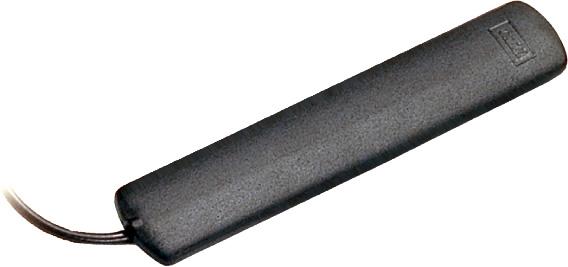

Linx Technologies - TE Connectivity ANT-DB1-VDP-RPS Passive Antenna Vertical Tri-Band Ant. RPSMA Connector

Gain: - 1.8 dBi, - 1.7 dBi, - 1.3 dBi

VSWR: 1.5, 1.9, 1.9

Style: I-Bar

Width: 22 mm

Height: 4.52 mm

Length: 115 mm

Bandwidth: 136 MHz, 280 MHz, 80 MHz

Impedance: 50 Ohms

Cable Type: 3 M RG174

Wavelength: 1/2 Wave

Application: Cellular, WiFi, LTE, CAT-M1, NB-IoT

Unit Weight: 82.330 g

Cable Length: 3 m

Polarization: Linear

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 3 Band

Center Frequency: 892 MHz, 1.85 GHz, 2.45 GHz

Mechanical Style: Module

Maximum Frequency: 2.48 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: IoT, ISM

Antenna Connector Type: RP-SMA Male

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
