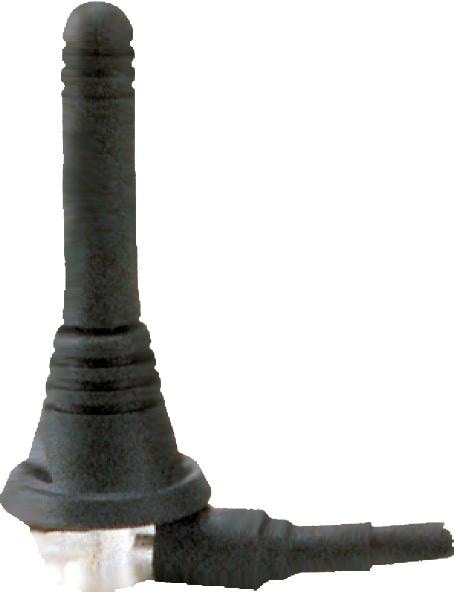

Linx Technologies - TE Connectivity ANT-DB1-RMS-TNC 1/4 Wave Dual-Band Vehicle Roof Mount TNC

Gain: - 0.6 dBi, 5.3 dBi

VSWR: 1.5, 2.0

Style: Stubby Right Angle

Width: 29 mm

Length: 77.8 mm

Bandwidth: 136 MHz, 280 MHz

Impedance: 50 Ohms

Cable Type: RG-58

Wavelength: 1/4 Wave

Application: Cellular

Cable Length: 4.3 m

Polarization: Linear

Mounting Style: Direct / Permanent Mount

Electrical Type: Monopole

Number of Bands: 2 Band

Center Frequency: 892 MHz, 1.85 GHz

Mechanical Style: Whip

Maximum Frequency: 1.99 GHz

Minimum Frequency: 860 MHz

Termination Style: TNC

Antenna Connector Type: TNC Male

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE), GSM, UMTS
