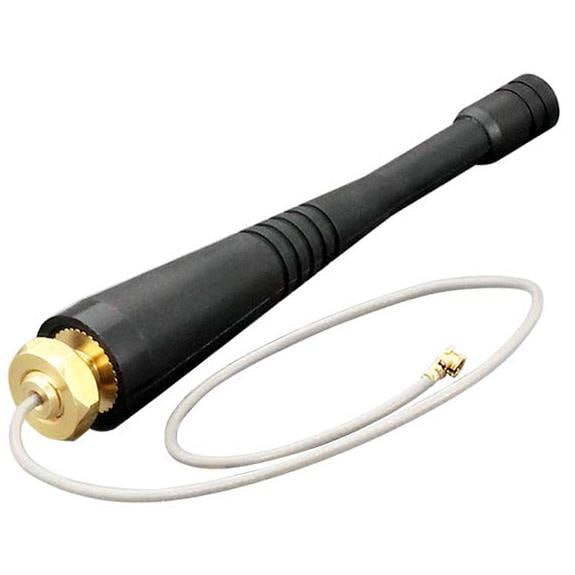

Linx Technologies - TE Connectivity ANT-B5-PW-QW Passive Antenna LTE B5 WHIP STR CAB PAN

Gain: 1.2 dBi

VSWR: 2:1

Style: Straight

Length: 83.5 mm

Diameter: 14.5 mm

Impedance: 50 Ohms

Cable Type: 216 mm RG174

Wavelength: 1/4 Wave

Application: FirstNet/Public Safety, Sensing, Remote Monitoring, Handheld Devices

Cable Length: 216 mm

Polarization: Linear

Power Rating: 10 W

Mounting Style: Direct / Permanent Mount

Electrical Type: Monopole

Number of Bands: 1 Band

Center Frequency: 854 MHz

Mechanical Style: Whip

Maximum Frequency: 900 MHz

Minimum Frequency: 800 MHz

Termination Style: Connector

Maximum Operating Temperature: + 90 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: 5G NR, Cellular (NBIoT, LTE), GSM, UMTS
