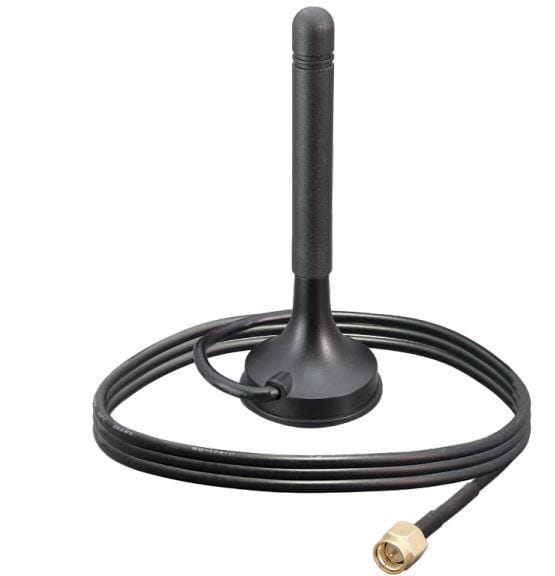

Linx Technologies - TE Connectivity ANT-5GW-MMG1-SMA-2 Magnetic Antenna 5G Cellular Wideband Dipole Whip Antenna, Magnetic Mount, 2 m Cable, SMA Plug

Gain: - 0.4 dBi, 2.5 dBi, - 1.5 dBi, 2.1 dBi, 3.5 dBi, 1.7 dBi

VSWR: 2.1, 2.3

Style: Straight

Height: 82.8 mm

Impedance: 50 Ohms

Cable Type: RG-174/U

Wavelength: 1/2 Wave

Application: LTE-M, NB-IoT, ISM

Cable Length: 2 m

Polarization: Linear

Power Rating: 10 W

Mounting Style: Magnetic Mount

Electrical Type: Dipole

Number of Bands: 8 Band

Mechanical Style: Whip

Maximum Frequency: 4.2 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Antenna Connector Type: SMA Plug

Maximum Operating Temperature: + 80 C

Minimum Operating Temperature: - 20 C

Protocol - Cellular, NBIoT, LTE: Cellular (NBIoT, LTE)
