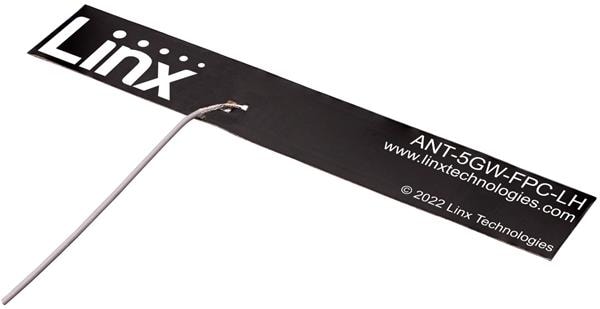

Linx Technologies - TE Connectivity ANT-5GW-FPC-LH200M4 Flexible Antenna 5G/4G Cellular GHz FPC antenna, 120x20mm, orthogonal cable egress, 200mm cable, MHF4

Gain: 5 dBi

VSWR: 1.6, 1.7, 1.8, 2, 4.7, 2.5, 2.7

Style: Yagi

Width: 20 mm

Height: 0.1 mm

Length: 120 mm

Bandwidth: 698 MHz, 803 MHz, 894 MHz, 1518 MHz, 1661 MHz, 2200 MHz, 2690 MHz, 4200 MHz, 5GHz

Impedance: 50 Ohms

Wavelength: 1/2 Wave

Application: 5G New Radio, LTE

Cable Length: 200 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Frequency Range: 617 MHz to 5 GHz

Number of Bands: 9 Band

Mechanical Style: Blade

Maximum Frequency: 5 GHz

Minimum Frequency: 617 MHz

Termination Style: Connector

Antenna Connector Type: MHF4

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Cellular, NBIoT, LTE: LTE-M, NBIoT
