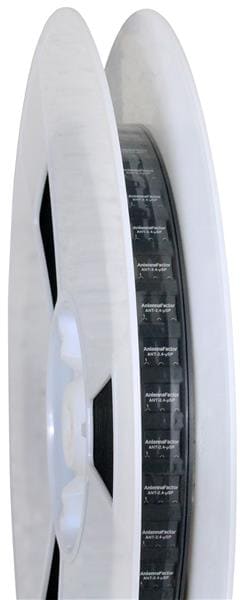

Linx Technologies - TE Connectivity ANT-2.4-USP-T Passive Antenna microSplatch Planar Antenna 2.45GHz, SMD

Gain: 3.8 dBi

VSWR: 1.9

Style: Ceramic

Width: 9.14 mm

Height: 10.16 mm

Length: 12.7 mm

Bandwidth: 150 MHz

Impedance: 50 Ohms

Technology: Monopole

Wavelength: 1/4 Wave

Application: Handheld Applications, Remote Controls, Pagers, Alert Devices, Portable Devices

Polarization: Linear

Mounting Style: PCB Mount

Electrical Type: Embedded Monopole

Number of Bands: 1 Band

Center Frequency: 2.45 GHz

Mechanical Style: Chip

Ground Plane Size: 19.56 mm x 38.74 mm

Maximum Frequency: 2.54 GHz

Minimum Frequency: 2.37 GHz

Termination Style: SMD/SMT

Protocol - Sub GHz: ISM

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 130 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth, BLE

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee), 802.16
