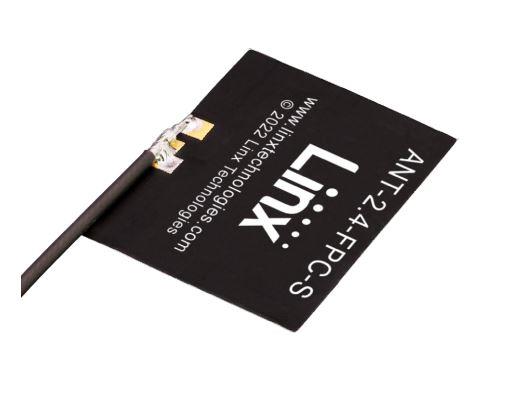

Linx Technologies - TE Connectivity ANT-2.4-FPC-SF150UF FPC Antenna 2.4 GHz FPC antenna, 25x20mm, vertical 150mm cable, UFL

Gain: 3.9 dBi

VSWR: 1.9

Style: Flexible

Width: 20.1 mm

Height: 0.1 mm

Length: 25.4 mm

Impedance: 50 Ohms

Cable Type: 1.13 mm Coax

Wavelength: 1/2 Wave

Cable Length: 150 mm

Polarization: Linear

Power Rating: 2 W

Mounting Style: Adhesive Mount

Electrical Type: Dipole

Number of Bands: 1 Band

Mechanical Style: Rectangular

Maximum Frequency: 2.5 GHz

Minimum Frequency: 2.4 GHz

Termination Style: Connector

Antenna Connector Type: U.FL Plug

Protocol - WiFi - 802.11: WiFi

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C

Protocol - Bluetooth, BLE - 802.15.1: Bluetooth

Protocol - ANT, Thread, Zigbee - 802.15.4: 802.15.4 (ANT, Thread, Zigbee)
