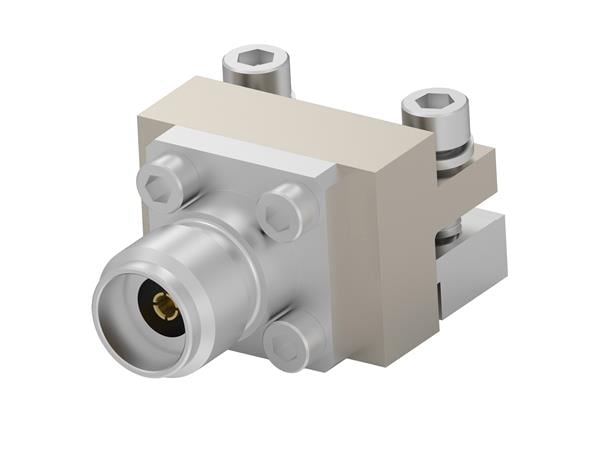

Linx Technologies - TE Connectivity 2441873-1 RF Connectors 2.92mm FEMALE S/T CONNECTOR WITH END LAUNCH, 50ohm
Gender: Socket (Female)
Polarity: Standard
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: 2.92 mm
Body Finish: Passivated
Orientation: Straight
REACH - SVHC: Details
Body Material: Stainless Steel
Mating Cycles: 500 Cycles
Mounting Type: End Launch
Mounting Style: Threaded
Voltage Rating: 335 Vrms
Contact Plating: Gold
Contact Material: Beryllium Copper
Maximum Frequency: 40 GHz
Minimum Frequency: DC
Termination Style: Twist On
Contact Termination: Solder
Insulation Resistance: 1 GOhms
Maximum Operating Temperature: + 85 C
Minimum Operating Temperature: - 40 C
