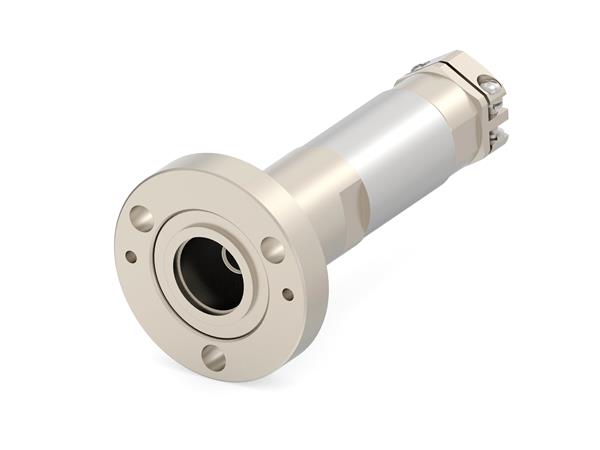

Linx Technologies - TE Connectivity 2441708-1 Clamp Connectors ??? 7/8' S/T CLAMP CONNECTOR FOR SFT-600 CABLE,50ohm
Model2441708-1
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Impedance: 50 Ohms
Isolation: Non-Isolated
RF Series: 7/8 in
Body Style: Flange
Cable Type: SPT-1400
Body Finish: Copper
Orientation: Straight
Body Material: Brass
Mating Cycles: 500 Cycles
Mounting Style: Flange Mount
Voltage Rating: 1665 Vrms
Contact Plating: Silver
Contact Material: Beryllium Copper
Maximum Frequency: 1 GHz
Minimum Frequency: DC
Termination Style: Twist On
Contact Termination: Solder
Insulation Resistance: 10 GOhms
Maximum Operating Temperature: + 125 C
Minimum Operating Temperature: - 40 C
