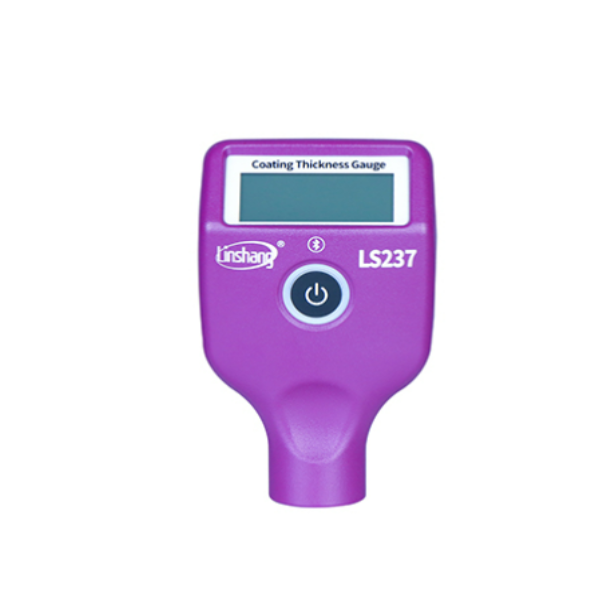

Linshang LS237 Car Paint Meter (0.0-3500μm)

Measuring range: 0.0-3500μm

Resolution:

0.1μm: (0μm-99.9μm)

1μm: (100μm-3500μm)

Accuracy: ≤±(3%H+2μm), H is the standard value

Unit: μm / mil

Measuring interval: 0.5 s

Minimum measuring area: Ø = 25mm

Minimum radius of curvature: Convex: 5mm / Concave: 25mm

Minimum substrate thickness: Fe:0.2mm / Al:0.05mm

Display: 128×48 dot matrix LCD

Power supply: Rechargeable lithium battery 3.7V@1200mAh

Range of working temperature: -20℃-50℃

Storage temperature range: -20℃-60℃

Host size: 101*62*28 mm

Weight (including battery): 76g

Data transfer: Bluetooth
