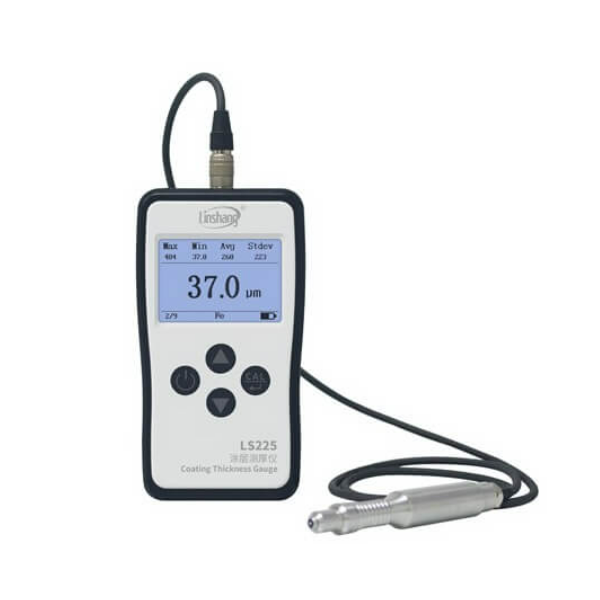

Linshang LS225+F500 Plating Thickness Gauge (0.0-500μm)

LSS225 plating thickness gauge host parameters

Display: 240×160 dot matrix LCD

Power supply: 4pcs of 1.5V AAA alkaline battery

Operation temperaturerange: 0℃-50℃

Storage temperaturerange: -20℃-60℃

Host size: 148*76*26 mm (L*W*H)

Weight (include battery): 194g

F500 probe parameters

Measuring range: 0.0-500μm

Resolution:

0.1μm: 0μm - 99.9μm

1μm: 100μm - 500μm

Repeatability: ≤ ± (0.8%H+0.1μm)Test with fixture, H is the standard value

Accuracy: ≤±(2%H+0.3μm) after calibration of 1-5 points, H is the standard value

Unit: μm / mil

Measuring interval: 1.5s

Minimum measuring area: Ø = 7mm

Minimum curvature: Convex:1.5mm / Concave:10mm

Minimum substrate thickness: 0.1mm

Probe size: 110*15 mm (Without connecting cable)

Probe weight: 81g
