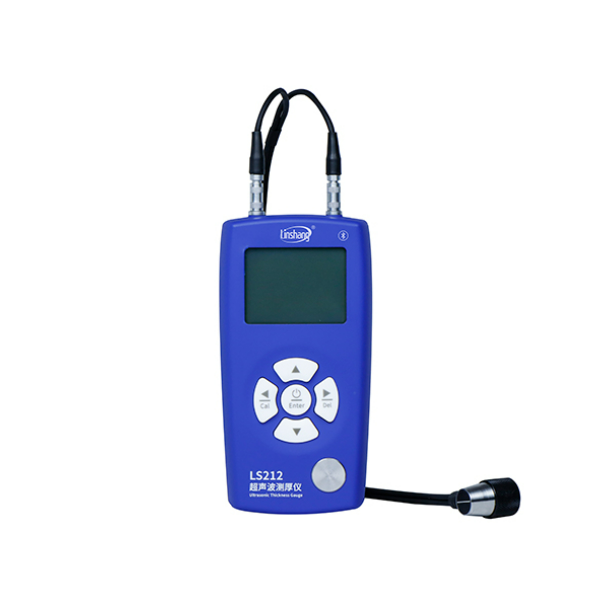

Linshang LS212 Ultrasonic Thickness Gauge

Host Parameter

Resolution:

0.8-10mm:0.001mm

10-100mm:0.01mm

100-350mm:0.1mm

Sound Velocity Range: 1000~9999m/s

Display: 240 * 160 dot matrix LCD

Unit: mm/inch

Power Supply: 2pcs of 1.5V AAA alkaline battery

Host size: 142 * 72 * 28 mm

Weight: About 230g

Operation Temperature Range: -10~60℃，0~85%RH（No condensation）

Storage Temperature Range: -10~60℃，0~85%RH（No condensation）

5MHZφ10 Probe

Minimum measuring area: φ10mm

Probe size: φ18*26mm

Measuring Range (45#steel): 0.8-350mm

Accuracy (H is the standard value):

H＜10mm:±0.05mm

H≥10mm:±0.5%H

Pipe measurement lower limit (45# steel): φ20*3mm

Exposure temperature: -10~60℃

7MHZ PT-06 Probe

Minimum measuring area: φ6mm

Probe size: φ15*25mm

Measuring Range (45#steel): 0.75-80mm

Accuracy (H is the standard value):

H＜10mm:±0.05mm

H≥10mm:±0.5%H

Pipe measurement lower limit (45# steel): φ20*2mm

Exposure temperature: -10~60℃

2MHZ ZT-12 Probe

Minimum measuring area: φ12mm

Probe size: φ18*28mm

Measuring Range (45#steel): 3-200mm

Accuracy (H is the standard value):

H＜10mm:±0.1mm

H≥10mm:±0.5%H

Pipe measurement lower limit (45# steel): φ30*4mm

Exposure temperature: -10~60℃

5MHZ GT-12 Probe

Minimum measuring area: φ12mm

Probe size: φ43*48mm

Measuring Range (45#steel): 3-200mm

Accuracy (H is the standard value):

H＜10mm:±0.05mm

H≥10mm:±0.5%H

Pipe measurement lower limit (45# steel): φ30*4mm

Exposure temperature: -10~500℃
