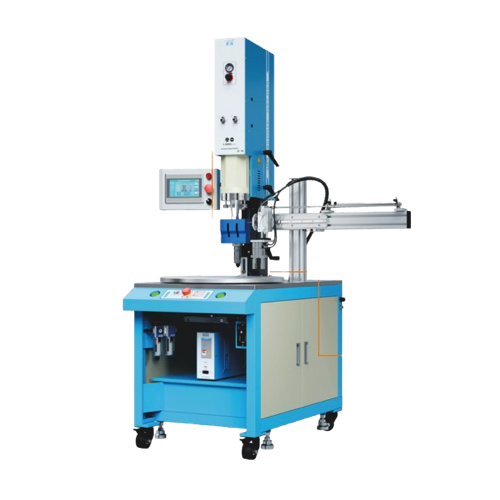

Lingke LK-RST30 (2600W) Intelligent Ultrasonic Rotary Welding Machines (20kHz; 2600W)

Turntable Station: Standard 6 or 8 stations; Optional 4, 10, or 12 stations

Frequency: 20kHz

Power: 2600W

Input Voltage: AC220V

Cylinder Size (mm): 63 × 75

Oscillation Time: 0.01 – 9.99 s

Air Pressure: >1, ≤7 bar

Rotary Table Diameter: Φ600 mm

Operation Switch: Two-hand release, emergency stop button, and optional external control switch

Size - Press (L×W×H): 1070 × 646 × 1812 mm

Size - Digital Generator (L×W×H): 430 × 230 × 108 mm

Size - Modular Generator (L×W×H): 530 × 405 × 155 mm

Mechanical Arm Width: 916 mm

Net Weight (Press): 195 kg

Net Weight (Generator): 7.5 kg
